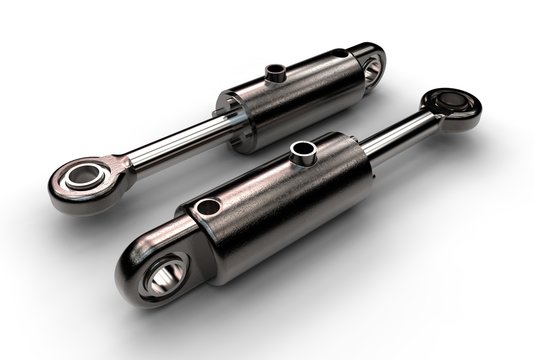

Hydraulics Cylinders

Cylinder up to 1000mm diameter and stroke of 3000mm

DOUBLE ACTING CYLINDER (REAR CLEVIS MOUNTING)

Bore Dia A B C D E J K
63 35 60 40 50 35 240 -
80 40 70 50 60 40 290 -
100 50 90 60 70 45 320 360
125 60 100 70 90 60 370 420
160 70 140 90 120 80 440 520
200 90 160 120 140 115 510 600
250 120 200 140 170 130 580 680
320 140 230 160 190 140 700 830


DOUBLE ACTING CYLINDER (CENTRE TRUNNION MOUNTING)

Bore Dia A B C D E(max) J K
63 95 35 150 100 190 220 -
80 120 40 190 130 215 250 -
100 140 50 230 170 250 290 340
125 180 60 280 190 265 320 370
160 220 90 360 230 300 360 430
200 300 110 440 300 325 410 490
250 360 130 550 360 360 450 550
320 430 160 680 450 430 560 680


DOUBLE ACTING CYLINDER (FRONT FLANGE MOUNTING)

Bore Dia A B C D E(max) F J K
63 12 6 130 165 100 5 220 -
80 12 6 160 200 120 5 250 -
100 14 6 170 210 136 5 300 350
125 18 8 200 250 166 5 350 400
160 20 8 260 320 206 5 420 470
200 22 12 320 380 260 5 550 600
250 22 16 390 460 310 8 570 630
320 22 20 460 540 390 8 700 780


DOUBLE ACTING CYLINDER (FOOT MOUNTING)

Bore Dia A B C D E F G H J K
63 12 120 25 50 150 50 170 120 185 -
80 12 140 25 60 170 50 180 120 215 -
100 14 160 30 75 200 60 190 140 250 290
125 18 200 40 90 250 80 200 150 280 330
160 22 250 50 120 300 100 210 160 320 400
200 26 320 60 150 380 120 220 170 370 450
250 33 390 70 180 470 140 230 180 400 510
320 40 450 80 225 550 240 240 190 520 640


DOUBLE ACTING CYLINDER (Basic Dimensions)

Optional
CUSHION LENGTH
Bore Dia Rod Dia P M N Q R Piston Rod
63 36/45 11/2" M30x2 45 50 120 25 25
80 45/56 1/2" M39x3 55 50 140 30 30
100 56/70 3/4" M50x3 75 60 170 35 35
125 70/90 3/4" M64x3 95 65 200 50 50
160 100/110 1" M90x3 120 70 270 55 55
200 125/140 11/4" M110x4 150 75 320 70 70
250 160/180 11/4" M120x4 160 80 400 90 90
320 200/220 11/2" M160x4 200 85 500 100 100


SINGLE ACTING CYLINDER (REAR CLEVIS MOUNTING)

Bore Dia A B C D E F M N P Q Dia-R
36 16 40 16 20 16 40 M27x2 35 3/8" 15 60
45 20 50 20 30 20 50 M33x2 40 3/8" 15 73
56 25 70 25 35 25 55 M42x2 50 1/2" 20 89
70 35 80 35 45 35 65 M52x2 60 1/2" 25 102
90 40 90 40 50 40 70 M68x3 80 1/2" 30 114
110 50 120 50 60 50 90 M68x3 80 3/4" 30 141
125 60 130 60 70 60 105 M90x3 110 3/4" 40 168
160 70 190 80 80 70 130 M110x3 125 1" 60 219


SECTION CODE

Construction



TR - TIE ROD
W - WELDED
S - SCREWED

 Piston Dia

50
63
80
100
125
160
200		 Piston Rod

28/36
38/45
45/56
56/70
70/90
100/110
125/140		 Stroke Length

Specify

Part




01 - BSP
02 - Metric ISO
03 - SAE FLANGE
O - Any other

Hydraulic Medium




A - Mineral Oil
B - Phosphate Ester
C - Any other type

Cushioning



W - Without Cushioning
K - Cushioning at Blind end
G - Cushioning at Gland end
B - Cushioning at Both end

Max-working Pressure



L 0-7Mpa (0-70Bar)
M 0-25Mpa (0-250Bar)
H 0-35Mpa (0-350Bar)
VH More than 35Mpa (350Bar)
W 100 70 500 01 A W M
