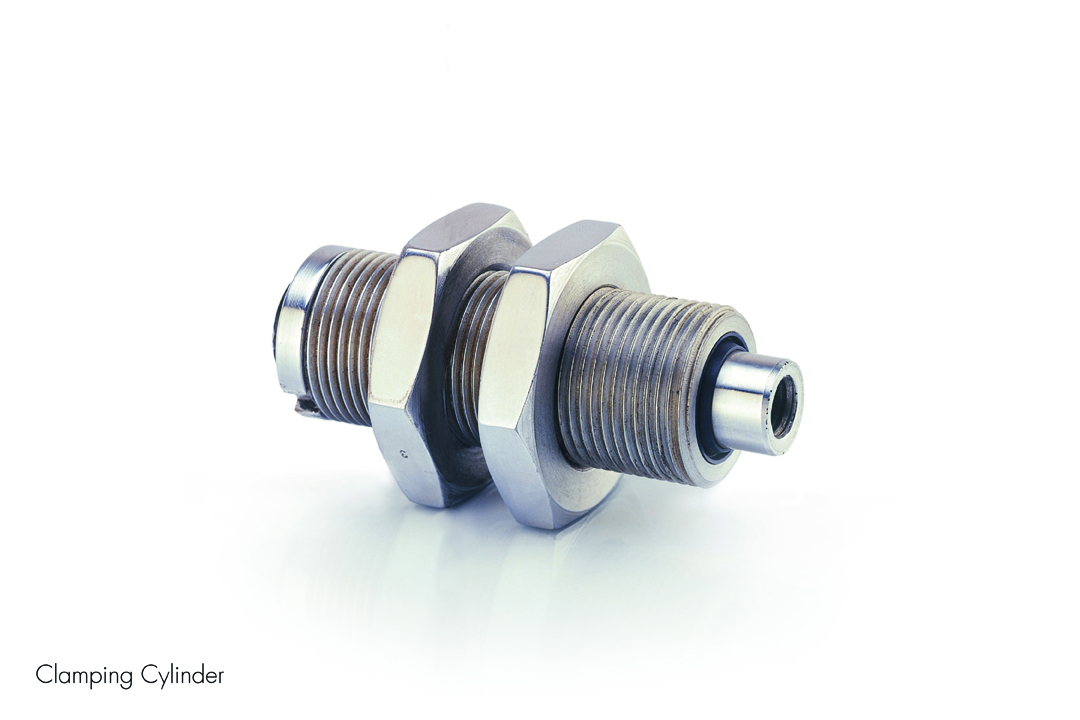

Clamping Cylinders

We have a wide variety to suit most of your clamping needs

SWING CYLINDER FRONT FLANGE MOUNTING

B R S A B C D E F G H I J L P
32 22 10,20,25,30,40,50,60,70 100 25 50 22 70 90 17 11 32 12 130 + S 1/4"
40 32 10,20,25,30,40,50,60,70 120 28 65 22 80 105 19 13 45 16 145 + S 1/4"
63 50 10,20,25,30,40,50,60,70 180 34 90 25 100 120 25 17 70 20 160 + S 1/4"
80 50 10,20,25,30,40,50,60,70 200 40 120 25 135 150 25 17 70 20 175 + S 1/4"


SWING CYLINDER BOTTOM FLANGE MOUNTING

B R S A B C D E F G H I J L P
32 22 10,20,25,30,40,50,60,70 100 25 50 22 70 90 17 11 32 12 130 + S 1/4"
40 32 10,20,25,30,40,50,60,70 120 28 65 22 80 105 19 13 45 16 145 + S 1/4"
63 50 10,20,25,30,40,50,60,70 180 34 90 25 100 120 25 17 70 20 160 + S 1/4"
80 50 10,20,25,30,40,50,60,70 200 40 120 25 135 150 25 17 70 20 175 + S 1/4"
SWING ANGLE X 600 900 1200


THREADED BODY SWING CYLINDER

B R S A B C D E F G L P
32 20 10,15,20 90 22 M50x1.5 16 70 40 30 150 + S 1/4"
40 32 10,15,20 110 26 M65x1.5 16 95 50 40 155 + S 1/4"
63 40 10,15,20 125 35 M88x1.5 20 120 70 60 195 + S 1/4"
SWING ANGLE X 600 900 1200


THREADED BODY CYLINDER

B R S A B C D E F L P
16 12 10,15,20 15 M8x2 15 M26x1.5 40 10 90 + S 1/4"
20 16 10,15,20 15 M10x2 15 M30x1.5 50 12 90 + S 1/4"
32 20 10,15,20 15 M10x2 15 M48x1.5 70 12 100 + S 1/4"
40 25 10,15,20 15 M12x1.75 15 M52x1.5 75 16 100 + S 1/4"


BLOCK CYLINDER FRONT OR TOP MOUNTINGS

B R S M O L D H E F P Q U
32 16 10,20,30,40,50,60,70,80,100 M12x1.75 60 70+S 15 13 44 60 1/4" 14 40
40 20 10,20,30,40,50,60,70,80,100 M16x2 70 80+S 20 14 50 70 3/8" 15.5 40
50 25 10,20,30,40,50,60,70,80,100 M16x2 80 80+S 20 14 50 70 3/8" 15.5 40
60 25 10,20,30,40,50,60,70,80,100 M16x2 90 100+S 20 17 105 120 3/8" 20 40
70 40 10,20,30,40,50,60,70,80,100 M35x2 120 155+S 20 17 125 150 1/2" 20 40
