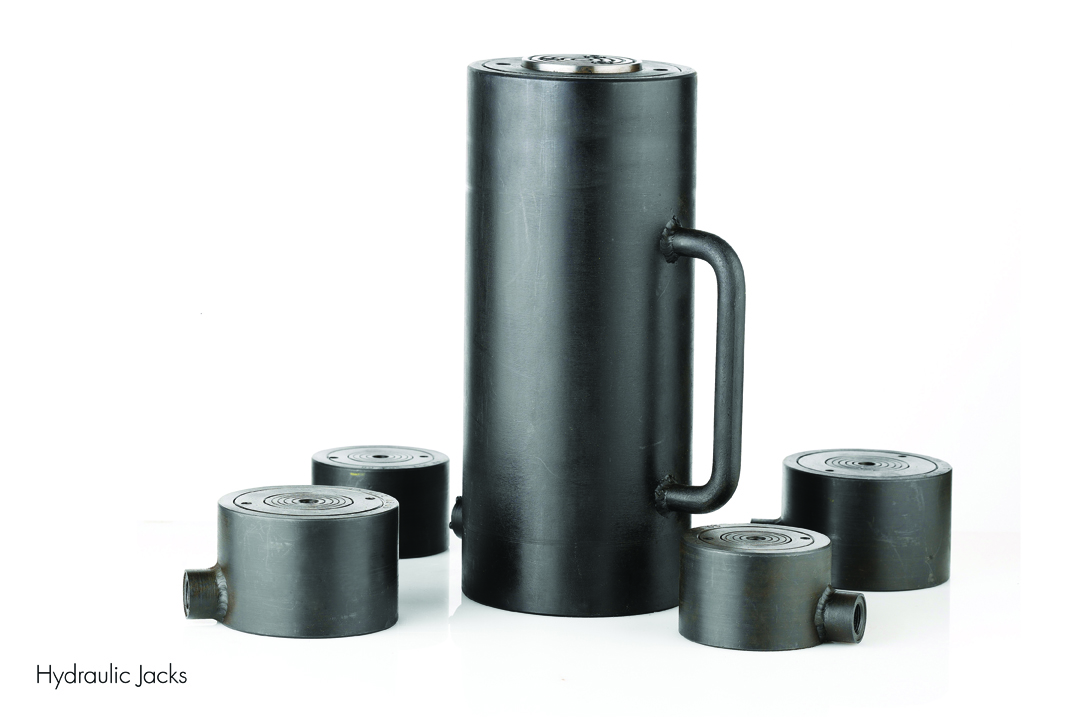

Hydraulic Jacks

Jack up to 500 Tonnes and max. Working pressure of 700 bar

Single acting, Load return, Threaded ram with lock nut

Model Capacity in Tonnes Dimensions
A B C D/Stroke J
SLTL 20 20 105 175 30 50 40
SLTL 20 20 105 225 30 100 40
SLTL 20 20 105 275 30 150 40
SLTL 20 20 105 325 30 200 40
SLTL 30 30 125 185 35 50 40
SLTL 30 30 125 235 35 100 40
SLTL 30 30 125 285 35 150 40
SLTL 30 30 125 335 35 200 40
SLTL 50 50 150 185 35 50 40
SLTL 50 50 150 235 35 100 40
SLTL 50 50 150 285 35 150 40
SLTL 50 50 150 335 35 200 40
SLTL 100 100 190 200 45 50 45
SLTL 100 100 190 250 45 100 45
SLTL 100 100 190 300 45 150 45
SLTL 100 100 190 350 45 200 45
SLTL 150 150 210 200 45 50 45
SLTL 150 150 210 250 45 100 45
SLTL 150 150 210 300 45 150 45
SLTL 150 150 210 350 45 200 45
SLTL 200 200 240 200 45 50 45
SLTL 200 200 240 250 45 100 45
SLTL 200 200 240 300 45 150 45
SLTL 200 200 240 350 45 200 45

Single acting, Spring return, Threaded ram with Lock nut

Model Capacity in Tonnes Dimensions
A B D/Stroke C J
SSTLR 20 20 105 175 50 30 40
SSTLR 20 20 105 225 100 30 40
SSTLR 20 20 105 275 150 30 40
SSTLR 20 20 105 325 200 30 40
SSTLR 30 30 125 185 50 35 40
SSTLR 30 30 125 235 100 35 40
SSTLR 30 30 125 285 150 35 40
SSTLR 30 30 125 335 200 35 40
SSTLR 50 50 150 185 50 35 40
SSTLR 50 50 150 235 100 35 40
SSTLR 50 50 150 285 150 35 40
SSTLR 50 50 150 335 200 35 40
SSTLR 100 100 190 200 50 45 45
SSTLR 100 100 190 250 100 45 45
SSTLR 100 100 190 300 150 45 45
SSTLR 100 100 190 350 200 45 45
SSTLR 150 150 210 200 50 45 45
SSTLR 150 150 210 250 100 45 45
SSTLR 150 150 210 300 150 45 45
SSTLR 150 150 210 350 200 45 45
SSTLR 200 200 240 200 50 45 45
SSTLR 200 200 240 250 100 45 45
SSTLR 200 200 240 300 150 45 45
SSTLR 200 200 240 350 200 45 45

Single acting, Spring return, Plain ram

Model Capacity in Tonnes Dimensions
A B D/Stroke J
SSP 20 20 105 175 50 40
SSP 20 20 105 225 100 40
SSP 20 20 105 275 150 40
SSP 20 20 105 325 200 40
SSP 30 30 125 185 50 40
SSP 30 30 125 235 100 40
SSP 30 30 125 285 150 40
SSP 30 30 125 335 200 40
SSP 50 50 150 185 50 40
SSP 50 50 150 235 100 40
SSP 50 50 150 285 150 40
SSP 50 50 150 335 200 40
SSP 100 100 190 200 50 45
SSP 100 100 190 250 100 45
SSP 100 100 190 300 150 45
SSP 100 100 190 350 200 45
SSP 150 150 210 200 50 45
SSP 150 150 210 250 100 45
SSP 150 150 210 300 150 45
SSP 150 150 210 350 200 45
SSP 200 200 240 200 50 45
SSP 200 200 240 250 100 45
SSP 200 200 240 300 150 45
SSP 200 200 240 350 200 45

Single acting, Load return, Plain ram

Model Capacity in Tonnes Dimensions
A B D/Stroke J
SLP 20 20 105 175 50 40
SLP 20 20 105 225 100 40
SLP 20 20 105 275 150 40
SLP 20 20 105 325 200 40
SLP 30 30 125 185 50 40
SLP 30 30 125 235 100 40
SLP 30 30 125 285 150 40
SLP 30 30 125 335 200 40
SLP 50 50 150 185 50 40
SLP 50 50 150 235 100 40
SLP 50 50 150 285 150 40
SLP 50 50 150 335 200 40
SLP 100 100 190 200 50 45
SLP 100 100 190 250 100 45
SLP 100 100 190 300 150 45
SLP 100 100 190 350 200 45
SLP 150 150 210 200 50 45
SLP 150 150 210 250 100 45
SLP 150 150 210 300 150 45
SLP 150 150 210 350 200 45
SLP 200 200 240 200 50 45
SLP 200 200 240 250 100 45
SLP 200 200 240 300 150 45
SLP 200 200 240 350 200 45

CENTRE HOLE JACK

MODEL TONNES STROKE A B C D E L P
CHJ10 10 10,15,20,25 70 36 18 15 5 70 + S ¼”
CHJ 20 20 10,15,20,25 93 40 20 15 5 70 + S ¼”
CHJ 30 30 10,15,20,25 110 50 30 18 5 90+S 3/8”
CHJ 50 50 10,15,20,25 140 63 36 20 5 120+S ½”
